ACFL-6211U

Low Power Digital Optocoupler

ACFL-6211U General Description

The ACFL-6211U and ACFL-6212U are dual channel, bi-directional, high speed digital CMOS optocouplers. The stretched SO-12 stretched package outline is designed to be compatible with standard surface mount processes and occupies the same land area as their single channel stretched SO8 package. This d.

ACFL-6211U Datasheet (385.74 KB)

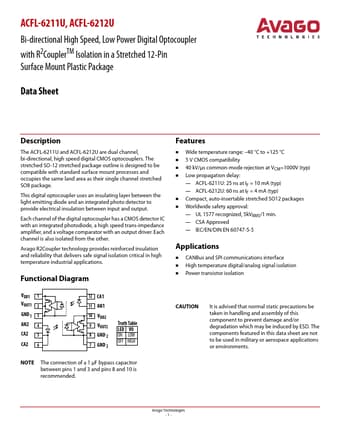

Preview of ACFL-6211U PDF

Datasheet Details

Part number:

ACFL-6211U

Manufacturer:

Avago

File Size:

385.74 KB

Description:

Low power digital optocoupler.
ACFL-6211U, ACFL-6212U Bi-directional High Speed, Low Power Digital Optocoupler with R2CouplerTM Isolation in a Stretched 12-Pin Surface Mount Plastic.
