ACFL-6212T, ACFL-6211T, Low Power Digital Optocoupler

ACFL-6211T, ACFL-6212T Automotive High Speed, Low Power Digital Optocoupler with R2CouplerTM Isolation in a Stretched 12-Pin Surface Mount Plastic Pac.
The ACFL-6211T and ACFL-6212T are automotive grade dual channel, bi-directional, high speed digital CMOS optocouplers.

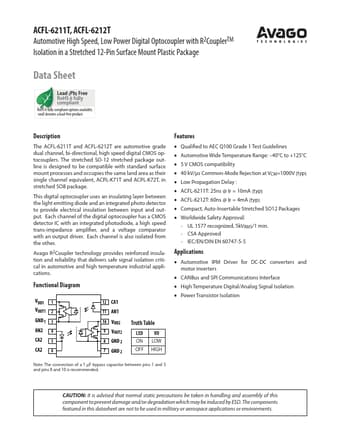

datasheet Preview Page 1 from Datasheet4u.com

ACFL-6211T-Avago.pdf

ACFL-6212T Datasheet Preview — This datasheet PDF includes multiple part numbers: ACFL-6212T, ACFL-6211T. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ACFL-6212T, ACFL-6211T

Manufacturer:

Avago

File Size:

166.33 KB

Description:

Low Power Digital Optocoupler

Note:

This datasheet PDF includes multiple part numbers: ACFL-6212T, ACFL-6211T.
Please refer to the document for exact specifications by model.

Features

* Qualified to AEC Q100 Grade 1 Test Guidelines
* Automotive Wide Temperature Range:
* 40°C to +125°C
* 5 V CMOS compatibility
* 40 kV/µs Common-Mode Rejection at VCM=1000V (typ)
* Low Propagation Delay :
* ACFL-6211T: 25ns @ IF = 10mA (ty
