HEDM-5121 Datasheet, Codewheels, Avago

HEDM-5121 Features

• Codewheels
• Codewheels Available in Glass, Film, and Metal
• Available in Two Standard Diameters
• Cost Effective
• Resolutions from 96 CPR to 2048 CPR

PDF File Details

Part number:

HEDM-5121

Manufacturer:

Avago

File Size:

299.29kb

Download:

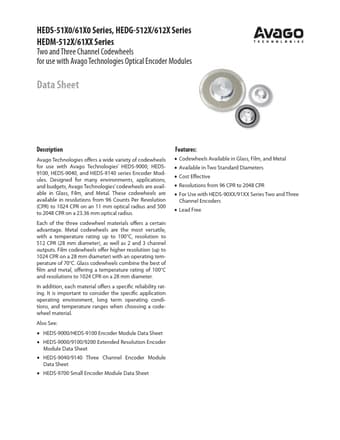

📄 Datasheet

Description:

Two and three channel codewheels. Avago Technologies offers a wide variety of codewheels for use with Avago Technologies’ HEDS-9000, HEDS9100, HEDS-9040, and HEDS-9140
