HEDM-512X

(HEDx-x1xX) Two and Three Channel Codewheels

HEDM-512X Features

* Codewheels Available in Glass, Film, and Metal

* Available in Two Standard Diameters

* Cost Effective

* Resolutions from 96 CPR to 2048 CPR

* For Use with HEDS-90XX/ 91XX Series Two and Three Channel Encoders Description Agilent Technologies offers a wide

HEDM-512X General Description

Agilent Technologies offers a wide variety of codewheels for use with Agilent’s HEDS-9000, HEDS-9100, HEDS-9040, and HEDS-9140 series Encoder Modules. Designed for many environments, applications, and budgets, Agilent codewheels are available in Glass, Film, and Metal. These codewheels are available.

HEDM-512X Datasheet (246.06 KB)

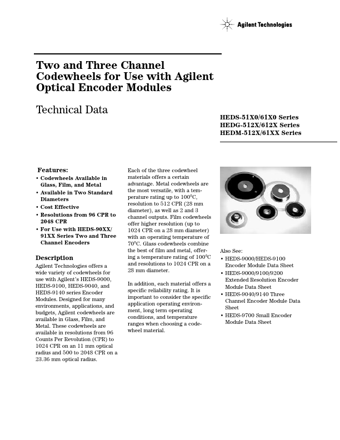

Preview of HEDM-512X PDF

Datasheet Details

Part number:

HEDM-512X

Manufacturer:

Hewlett-Packard

File Size:

246.06 KB

Description:

(hedx-x1xx) two and three channel codewheels.
www.DataSheet4U.com Two and Three Channel Codewheels for Use with Agilent Optical Encoder Modules Technical Data HEDS-51X0/61X0 Series HEDG-512X/612X.
