HEDG-612X - (HEDx-x1xX) Two and Three Channel Codewheels

Product Overview

Hewlett-Packard

📥 Download Datasheet

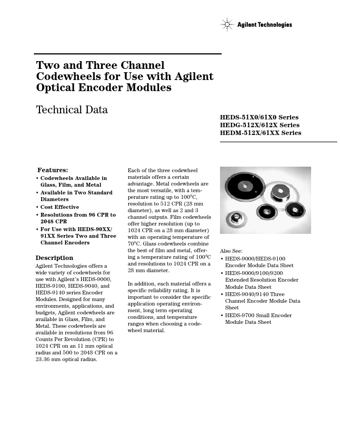

HEDG-612X (HEDx-x1xX) Two and Three Channel Codewheels by Hewlett-Packard - Datasheet Preview — Datasheet preview – HEDG-612X

Datasheet Details

Part number	HEDG-612X
Manufacturer	Hewlett-Packard
File Size	246.06 KB
Description	(HEDx-x1xX) Two and Three Channel Codewheels
Datasheet	HEDG-612X Datasheet
Note	This datasheet PDF includes multiple part numbers: HEDG-612X, HEDG-512X_Hewlett. Please refer to the document for exact specifications by model.
Additional preview pages of the HEDG-612X datasheet.

Product details

Description

Agilent Technologies offers a wide variety of codewheels for use with Agilent’s HEDS-9000, HEDS-9100, HEDS-9040, and HEDS-9140 series Encoder Modules.

Features

Codewheels Available in Glass, Film, and Metal.
Available in Two Standard Diameters.
Cost Effective.
Resolutions from 96 CPR to 2048 CPR.
For Use with HEDS-90XX/ 91XX Series Two and Three Channel Encoders.
