HEDG-6121

Two and Three Channel Codewheels

HEDG-6121 Features

* Codewheels Available in Glass, Film, and Metal

* Available in Two Standard Diameters

* Cost Effective

* Resolutions from 96 CPR to 2048 CPR

* For Use with HEDS-90XX/91XX Series Two and Three Channel Encoders

* Lead Free Absolute Maximum Ratings It

HEDG-6121 General Description

Avago Technologies offers a wide variety of codewheels for use with Avago Technologies’ HEDS-9000, HEDS9100, HEDS-9040, and HEDS-9140 series Encoder Modules. Designed for many environments, applica­tions, and budgets, Avago Technologies’ code­wheels are available in Glass, Film, and Metal. These cod.

HEDG-6121 Datasheet (299.29 KB)

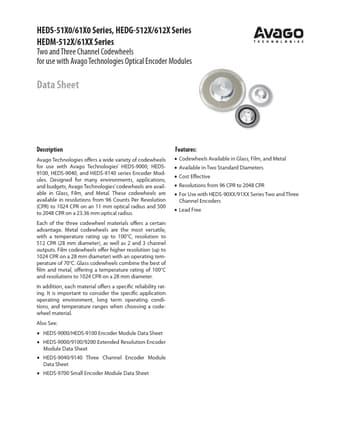

Preview of HEDG-6121 PDF

Datasheet Details

Part number:

HEDG-6121

Manufacturer:

Avago

File Size:

299.29 KB

Description:

Two and three channel codewheels.
HEDS-51X0/61X0 Series, HEDG-512X/612X Series HEDM-512X/61XX Series Two and Three Channel Codewheels for use with Avago Technologies Optical Encoder Mo.
