HEDG-5120, HEDS-5120, Two and Three Channel Codewheels

HEDS-51X0/61X0 Series, HEDG-512X/612X Series HEDM-512X/61XX Series Two and Three Channel Codewheels for use with Avago Technologies Optical Encoder Mo.
Avago Technologies offers a wide variety of codewheels for use with Avago Technologies’ HEDS-9000, HEDS9100, HEDS-9040, and HEDS-9140 series Encoder M.

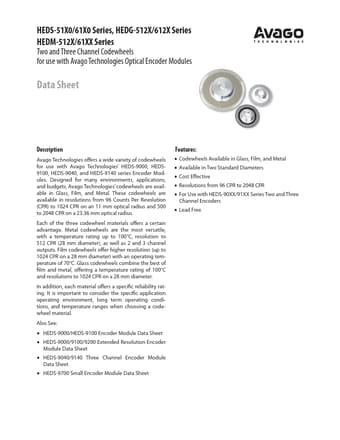

datasheet Preview Page 1 from Datasheet4u.com

HEDS-5120-Avago.pdf

HEDG-5120 Datasheet Preview — This datasheet PDF includes multiple part numbers: HEDG-5120, HEDS-5120. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HEDG-5120, HEDS-5120

Manufacturer:

Avago

File Size:

299.29 KB

Description:

Two and Three Channel Codewheels

Note:

This datasheet PDF includes multiple part numbers: HEDG-5120, HEDS-5120.
Please refer to the document for exact specifications by model.

Features

* Codewheels Available in Glass, Film, and Metal
* Available in Two Standard Diameters
* Cost Effective
* Resolutions from 96 CPR to 2048 CPR
* For Use with HEDS-90XX/91XX Series Two and Three Channel Encoders
