HED1005 - GENERAL PURPOSE TRANSISTOR

HED1005 Description

REPLACEMENT TYPE : 2SD1005 .

HED1005 Features

* Small Flat Package
* High Breakdown Voltage
* Excellent DC Current Gain Linearity HED1005(NPN) GENERAL PURPOSE TRANSISTOR MAXIMUM RATINGS (TA = 25°C unless otherwise noted) Parameter Symbol Value Collector-Base Voltage VCBO 100 Collector-Emitter Voltage VCEO 80 Emitter-Base

📥 Download Datasheet

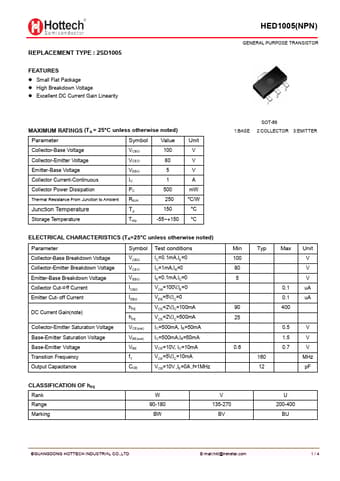

Preview of HED1005 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HED1005
Manufacturer
HOTTECH
File Size
0.96 MB
Datasheet
HED1005-HOTTECH.pdf
Description
GENERAL PURPOSE TRANSISTOR
