HEDL-5500 Encoder Line Drivers

Line Drivers are available for the HEDS-55xx/56xx series and the HEDS-9000/9100/9200/9040/ 9140 series encoders. The line driver offers enhanced performance when the encoder is used in noisy environments, or when it is required to drive long distances. Note: Agilent Technologies encoders are not re.

HEDL-5500 Features

* Available on Both Encoder Modules (HEDS-9000 Series) and Encoder Kit Housing (HEDS-5500 Series)

* Complementary Outputs

* Industry Standard Line Driver IC

* Single 5 V Supply

* Onboard Bypass Capacitor

* 70°C and 100°C Versions Available The 70°C ve

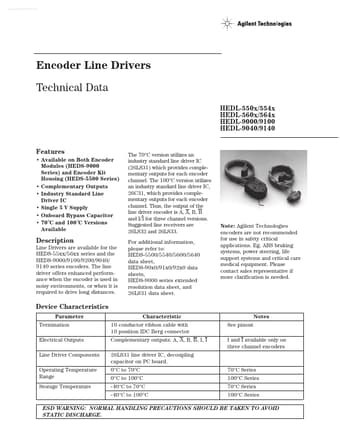

HEDL-550x_Hewlett-Packard.pdf
