HEDL-5505

Encoder Line Drivers

HEDL-5505 Features

* Available on Both Encoder Modules (HEDS-9000 Series) and Encoder Kit Housing (HEDS-5500 Series)

* Complementary Outputs

* Industry Standard Line Driver IC

* Single 5 V Supply

* Onboard Bypass Capacitor

* 70°C and 100°C Versions Available The 70°C ve

HEDL-5505 General Description

Line Drivers are available for the HEDS-55xx/56xx series and the HEDS-9000/9100/9200/9040/ 9140 series encoders. The line driver offers enhanced performance when the encoder is used in noisy environments, or when it is required to drive long distances. Note: Agilent Technologies encoders are not re.

HEDL-5505 Datasheet (106.67 KB)

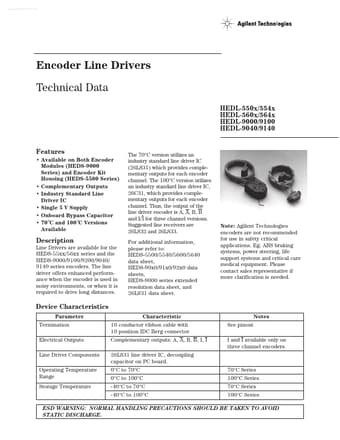

Preview of HEDL-5505 PDF

Datasheet Details

Part number:

HEDL-5505

Manufacturer:

Hewlett-Packard

File Size:

106.67 KB

Description:

Encoder line drivers.
