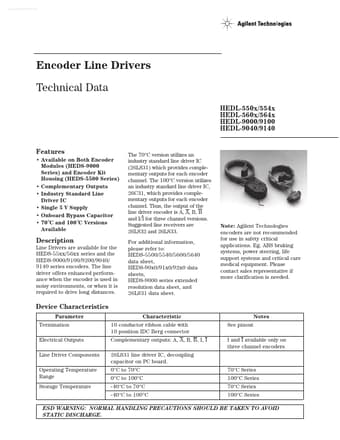

Additional preview pages of the HEDL-550x datasheet.

Product details

Description

Line Drivers are available for the HEDS-55xx/56xx series and the HEDS-9000/9100/9200/9040/ 9140 series encoders.

Features

Available on Both Encoder Modules (HEDS-9000 Series) and Encoder Kit Housing (HEDS-5500 Series).
Complementary Outputs.
Industry Standard Line Driver IC.
Single 5 V Supply.
Onboard Bypass Capacitor.
70°C and 100°C Versions Available The 70°C version utilizes an industry standard line driver IC (26LS31) which provides complementary outputs for each encoder channel. The 100°C version utilizes an industry standard line driver IC, 26C31, which.
