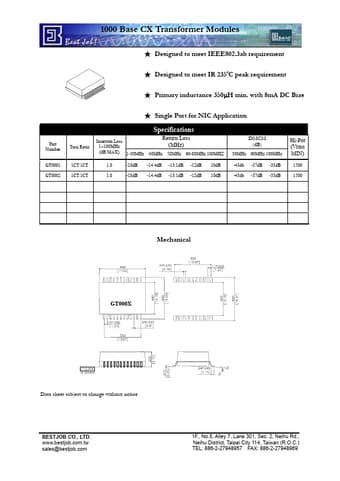

GT0001 - 1000 Base CX Transformer Modules
1000 Base CX Transformer Modules ★ Designed to meet IEEE802.3ab requirement ★ Designed to meet IR 2350C peak requirement ★ Primary inductance 350µH min.
with 8mA DC Bias ★ Single Port for NIC Application Part Number GT0001 GT0002 Turn Ratio Specifications Insertion Loss 1~100MHz Return Loss (MHz) (dB MAX) 1-30MHz 40MHz 50MHz 60-80MHz 100MHZ DMCM (dB) 30MHz 60MHz 100MHz Hi-Pot (Vrms MIN) 1CT:1CT 1.0 -18dB -14.4dB -13.1dB -12dB 10dB -43db -37dB -33dB 1500 1CT:1CT 1.0 -18dB -14.
