2SB1218AW - PNP Silicon Transistor

Datasheet Summary

Features

  • z z z High forward current transfer ratio hFE Excellent HFE Linearity. Complements the 2SD1819A. Production specification 2SB1218AW Pb Lead-free www. DataSheet4U. com.

📥 Download Datasheet

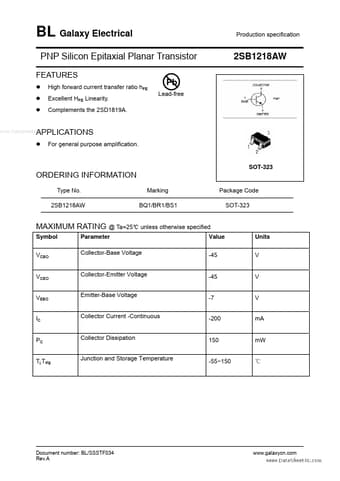

Datasheet preview – 2SB1218AW

Datasheet Details

Part number 2SB1218AW
Manufacturer BL
File Size 234.85 KB
Description PNP Silicon Transistor
Datasheet download datasheet 2SB1218AW Datasheet
Additional preview pages of the 2SB1218AW datasheet.

📁 Similar Datasheet

  • 2SB1218A - PNP Silicon Transistor (GME)
  • 2SB1218A - Silicon PNP Transistor (Panasonic Semiconductor)
  • 2SB1218A - PNP Transistor (TRANSYS Electronics)
  • 2SB1218A - PNP Silicon Epitaxial Paner Transistors (SeCoS)
  • 2SB1218A - PNP Transistor (Jin Yu Semiconductor)
  • 2SB1218A - Silicon PNP transistor (BLUE ROCKET ELECTRONICS)
  • 2SB1218 - Silicon PNP epitaxial planar type Transistor (Kexin)
  • 2SB1218 - Transistor (TY Semiconductor)
  • 2SB1214 - PNP Epitaxial Planar Silicon Transistor (Sanyo Semicon Device)
  • 2SB1215 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
Other Datasheets by BL

    Full PDF Text Transcription

    Click to expand full text
    BL Galaxy Electrical PNP Silicon Epitaxial Planar Transistor FEATURES z z z High forward current transfer ratio hFE Excellent HFE Linearity. Complements the 2SD1819A. Production specification 2SB1218AW Pb Lead-free www.DataSheet4U.com APPLICATIONS z For general purpose amplification. ORDERING INFORMATION Type No. 2SB1218AW Marking BQ1/BR1/BS1 SOT-323 Package Code SOT-323 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol VCBO VCEO VEBO IC PC Tj,Tstg Parameter Collector-Base Voltage Value -45 Units V Collector-Emitter Voltage Emitter-Base Voltage Collector Current -Continuous -45 -7 -200 V V mA Collector Dissipation Junction and Storage Temperature 150 -55~150 mW ℃ Document number: BL/SSSTF034 Rev.A www.galaxycn.
