2SB1218 - Silicon PNP epitaxial planar type Transistor

Datasheet Summary

High forward current transfer ratio hFE. 1 Emitter 2 Base 3 Collector Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Peak collector current Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO ICP IC PC Tj Tstg Rating -45 -45 -7 -200 -100 150 150 -55 to +150 Unit V V V A A mW Electrical Characteristics Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emit.

Kexin

Part number	2SB1218
Manufacturer	Kexin
File Size	63.49 KB
Description	Silicon PNP epitaxial planar type Transistor
Datasheet	2SB1218 Datasheet

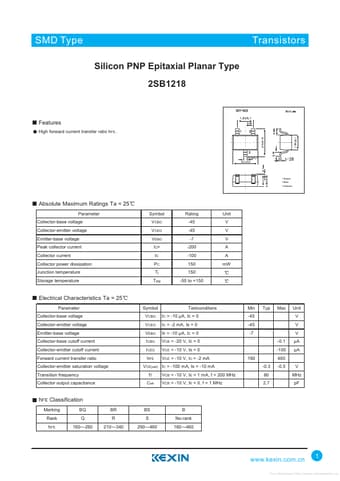

Additional preview pages of the 2SB1218 datasheet.

2SB1218 - Transistor (TY Semiconductor)
2SB1218A - PNP Silicon Transistor (GME)
2SB1218A - Silicon PNP Transistor (Panasonic Semiconductor)
2SB1218A - PNP Transistor (TRANSYS Electronics)
2SB1218A - PNP Silicon Epitaxial Paner Transistors (SeCoS)
2SB1218A - PNP Transistor (Jin Yu Semiconductor)
2SB1218A - Silicon PNP transistor (BLUE ROCKET ELECTRONICS)
2SB1218AW - PNP Silicon Transistor (BL)
2SB1214 - PNP Epitaxial Planar Silicon Transistor (Sanyo Semicon Device)
2SB1215 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)

Other Datasheets by Kexin

Click to expand full text

SMD Type Silicon PNP Epitaxial Planar Type 2SB1218 Transistors IC Features High forward current transfer ratio hFE.
