Ordering number:ENN2540A

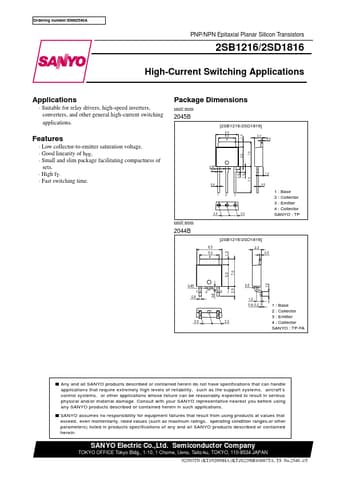

PNP/NPN Epitaxial Planar Silicon Transistors
2SB1216/2SD1816
High-Current Switching Applications
Applications
· Suitable for relay drivers, high-speed inverters, converters, and other general high-current switching applications.
Features
· Low collector-to-emitter saturation voltage. · Good linearity of hFE. · Small and slim package facilitating compactness of
sets. · High fT. · Fast switching time.
Package Dimensions
unit:mm 2045B
[2SB1216/2SD1816]
6.5 5.0 2.3 4 0.5
5.5 1.5 7.0
unit:mm 2044B
0.85 0.7
0.6 12 3
2.3 2.3
0.8 1.6 7.5
1.2
0.5
1 : Base 2 : Collector 3 : Emitter 4 : Collector SANYO : TP
[2SB1216/2SD1816]
6.5 2.3 5.0 0.5 4
0.8 5.5 1.5
2.5 7.0 1.2
0.85 1
0.6
2
3
2.3 2.3
0.5
1.2 0 to 0.
