2SB1207 - Silicon PNP epitaxial planer type Transistor

Datasheet Summary

Features

  • q q q Parameter Collector to base voltage Collector to emitter voltage Emitter to base voltage Peak collector current Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO ICP IC PC Tj Tstg Ratings.
  • 15.
  • 10.
  • 7.
  • 1.
  • 0.5 300 150.
  • 55 ~ +150 Unit V V 1 2 3 1.27 1.27 V A A mW ˚C ˚C 1:Emitter 2:Collector 3:Base 2.54±0.15 EIAJ:SC.
  • 72 New S Type Package s Electrical Characteristics Pa.

📥 Download Datasheet

Datasheet preview – 2SB1207

Datasheet Details

Part number 2SB1207
Manufacturer Panasonic Semiconductor
File Size 36.80 KB
Description Silicon PNP epitaxial planer type Transistor
Datasheet download datasheet 2SB1207 Datasheet
Additional preview pages of the 2SB1207 datasheet.

📁 Similar Datasheet

  • 2SB1201 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SB1201 - Bipolar Transistor (ON Semiconductor)
  • 2SB1201 - Transistors (Kexin)
  • 2SB1201 - Silicon PNP Power Transistor (Inchange Semiconductor)
  • 2SB1202 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SB1202 - Bipolar Transistor (ON Semiconductor)
  • 2SB1202 - PNP Epitaxial Planar Silicon Transistors (GME)
  • 2SB1202 - Silicon PNP Power Transistor (Inchange Semiconductor)
  • 2SB1202 - PNP PLANAR TRANSISTOR (UTC)
  • 2SB1203 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
Other Datasheets by Panasonic Semiconductor
  • 2SB1209 - Silicon PNP triple diffusion planer type Transistor
  • 2SB1218A - Silicon PNP Transistor
  • 2SB1219 - Silicon PNP epitaxial planer type Transistor
  • 2SB1219A - Silicon PNP epitaxial planer type Transistor
  • 2SB1220 - Silicon PNP epitaxial planer type Transistor
  • 2SB1221 - Silicon PNP epitaxial planer type Transistor
  • 2SB1221 - Silicon NPN Transistor
  • 2SB1252 - Silicon PNP epitaxial planar type Transistor

Full PDF Text Transcription

Click to expand full text

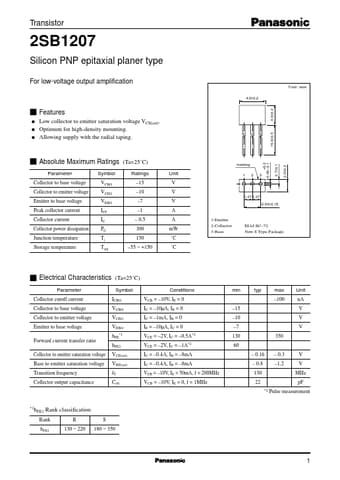

Transistor 2SB1207 Silicon PNP epitaxial planer type For low-voltage output amplification Unit: mm 4.0±0.2 3.0±0.2 0.7±0.1 s Features q q q Parameter Collector to base voltage Collector to emitter voltage Emitter to base voltage Peak collector current Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO ICP IC PC Tj Tstg Ratings –15 –10 –7 –1 – 0.5 300 150 –55 ~ +150 Unit V V 1 2 3 1.27 1.27 V A A mW ˚C ˚C 1:Emitter 2:Collector 3:Base 2.54±0.
