2SB1218A - Silicon PNP Transistor

Datasheet Summary

Features

  • q q 0.425 1.25±0.1 0.425 High foward current transfer ratio hFE. S-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing. 0.65 1 2.0±0.2 1.3±0.1 0.65 3 2 0.2 s Absolute Maximum Ratings Parameter Collector to base voltage Collector to emitter voltage Emitter to base voltage Peak collector current Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO ICP I.

📥 Download Datasheet

Datasheet preview – 2SB1218A

Datasheet Details

Part number 2SB1218A
Manufacturer Panasonic Semiconductor
File Size 48.12 KB
Description Silicon PNP Transistor
Datasheet download datasheet 2SB1218A Datasheet
Additional preview pages of the 2SB1218A datasheet.

📁 Similar Datasheet

  • 2SB1218A - PNP Silicon Transistor (GME)
  • 2SB1218A - PNP Transistor (TRANSYS Electronics)
  • 2SB1218A - PNP Silicon Epitaxial Paner Transistors (SeCoS)
  • 2SB1218A - PNP Transistor (Jin Yu Semiconductor)
  • 2SB1218A - Silicon PNP transistor (BLUE ROCKET ELECTRONICS)
  • 2SB1218AW - PNP Silicon Transistor (BL)
  • 2SB1218 - Silicon PNP epitaxial planar type Transistor (Kexin)
  • 2SB1218 - Transistor (TY Semiconductor)
  • 2SB1214 - PNP Epitaxial Planar Silicon Transistor (Sanyo Semicon Device)
  • 2SB1215 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
Other Datasheets by Panasonic Semiconductor
  • 2SB1219 - Silicon PNP epitaxial planer type Transistor
  • 2SB1219A - Silicon PNP epitaxial planer type Transistor
  • 2SB1207 - Silicon PNP epitaxial planer type Transistor
  • 2SB1209 - Silicon PNP triple diffusion planer type Transistor
  • 2SB1220 - Silicon PNP epitaxial planer type Transistor
  • 2SB1221 - Silicon PNP epitaxial planer type Transistor
  • 2SB1221 - Silicon NPN Transistor
  • 2SB1252 - Silicon PNP epitaxial planar type Transistor

Full PDF Text Transcription

Click to expand full text

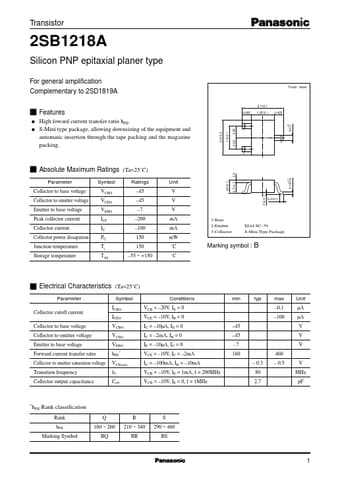

Transistor 2SB1218A Silicon PNP epitaxial planer type For general amplification Complementary to 2SD1819A 2.1±0.1 Unit: mm s Features q q 0.425 1.25±0.1 0.425 High foward current transfer ratio hFE. S-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing. 0.65 1 2.0±0.2 1.3±0.1 0.65 3 2 0.2 s Absolute Maximum Ratings Parameter Collector to base voltage Collector to emitter voltage Emitter to base voltage Peak collector current Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO ICP IC PC Tj Tstg (Ta=25˚C) 0.9±0.1 –45 –45 –7 –200 –100 150 150 –55 ~ +150 V V V mA mA mW ˚C ˚C 0.7±0.1 Ratings Unit 0 to 0.1 0.2±0.
