2SB1214 - PNP Epitaxial Planar Silicon Transistor

Datasheet Summary

Features

  • High DC current gain.
  • Darlington connection.
  • Small and slim package permitting the 2SB1214- applied sets to be made more compact. Package Dimensions unit:mm 2045B [2SB1214] unit:mm 2044B [2SB1214] 1 : Base 2 : Collector 3 : Emitter 4 : Collector SANYO : TP 1 : Base 2 : Collector 3 : Emitter 4 : Collector SANYO : TP-FA Any and all SANYO products described or contained herein do not have specifications that can handle.

📥 Download Datasheet

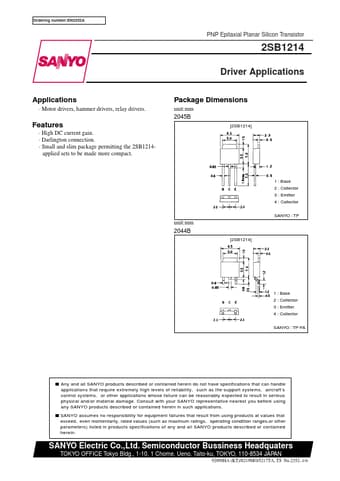

Datasheet preview – 2SB1214

Datasheet Details

Part number 2SB1214
Manufacturer Sanyo Semicon Device
File Size 69.67 KB
Description PNP Epitaxial Planar Silicon Transistor
Datasheet download datasheet 2SB1214 Datasheet
