2SB1203 Datasheet PDF - Sanyo Semicon Device PNP/NPN Epitaxial Planar Silicon Transistors Specs

2SB1203 - PNP/NPN Epitaxial Planar Silicon Transistors

Datasheet Summary

Features

Low collector-to-emitter saturation voltage.
High current and high fT.
Excellent linearity of hFE.
Fast switching speed.
Small and slim package making it easy to make 2SB1203/2SD1803-applied sets smaller. 1 : Base 2 : Collector 3 : Emitter 4 : Collector SANYO : TP unit:mm 2044B [2SB1203/2SD1803] 1 : Base 2 : Collector 3 : Emitter 4 : Collector SANYO : TP-FA Any and all SANYO products described or contained herein do not have specifications that can handle applica.

Datasheet Details

Part number	2SB1203
Manufacturer	Sanyo Semicon Device
File Size	186.75 KB
Description	PNP/NPN Epitaxial Planar Silicon Transistors
Datasheet	2SB1203 Datasheet

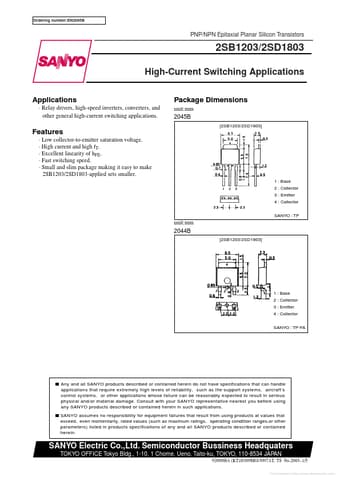

Additional preview pages of the 2SB1203 datasheet.

📁 Similar Datasheet

2SB1203 - Bipolar Transistor (ON Semiconductor)

2SB1203 - Silicon PNP transistor (BLUE ROCKET ELECTRONICS)

2SB1203 - Silicon PNP Power Transistor (Inchange Semiconductor)

2SB1203 - Transistors (Kexin)

2SB1201 - Bipolar Transistor (ON Semiconductor)

2SB1201 - Transistors (Kexin)

2SB1201 - Silicon PNP Power Transistor (Inchange Semiconductor)

2SB1202 - Bipolar Transistor (ON Semiconductor)

2SB1202 - PNP Epitaxial Planar Silicon Transistors (GME)

2SB1202 - Silicon PNP Power Transistor (Inchange Semiconductor)

Full PDF Text Transcription

Click to expand full text

Ordering number:EN2085B PNP/NPN Epitaxial Planar Silicon Transistors 2SB1203/2SD1803 High-Current Switching Applications Applications · Relay drivers, high-speed inverters, converters, and other general high-current switching applications. Package Dimensions unit:mm 2045B [2SB1203/2SD1803] Features · Low collector-to-emitter saturation voltage. · High current and high fT. · Excellent linearity of hFE. · Fast switching speed. · Small and slim package making it easy to make 2SB1203/2SD1803-applied sets smaller.
