2SB1218A - PNP Silicon Transistor

Datasheet Summary

Features

  • High forward current transfer ratio hFE.
  • Excellent HFE Linearity.
  • Complements the 2SD1819A. Pb Lead-free.

📥 Download Datasheet

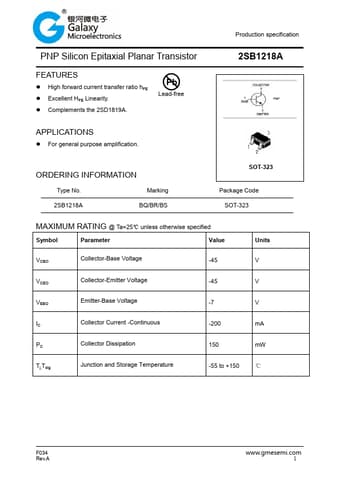

Datasheet preview – 2SB1218A

Datasheet Details

Part number 2SB1218A
Manufacturer GME
File Size 364.32 KB
Description PNP Silicon Transistor
Datasheet download datasheet 2SB1218A Datasheet
Additional preview pages of the 2SB1218A datasheet.

📁 Similar Datasheet

  • 2SB1218A - Silicon PNP Transistor (Panasonic Semiconductor)
  • 2SB1218A - PNP Transistor (TRANSYS Electronics)
  • 2SB1218A - PNP Silicon Epitaxial Paner Transistors (SeCoS)
  • 2SB1218A - PNP Transistor (Jin Yu Semiconductor)
  • 2SB1218A - Silicon PNP transistor (BLUE ROCKET ELECTRONICS)
  • 2SB1218AW - PNP Silicon Transistor (BL)
  • 2SB1218 - Silicon PNP epitaxial planar type Transistor (Kexin)
  • 2SB1218 - Transistor (TY Semiconductor)
  • 2SB1214 - PNP Epitaxial Planar Silicon Transistor (Sanyo Semicon Device)
  • 2SB1215 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
Other Datasheets by GME
  • 2SB1202 - PNP Epitaxial Planar Silicon Transistors
  • 2SB1240 - Medium Power Transistor
  • 2SB1243 - Power Transistor
  • 2SB1260 - Power Transistor
  • 2SB1261 - PNP Epitaxial Planar Silicon Transistors
  • 2SB1274 - PNP Epitaxial Planar Silicon Transistors
  • 2SB1073 - PNP Transistor
  • 2SB1119 - PNP Epitaxial Planar Silicon Transistors

Full PDF Text Transcription

Click to expand full text
PNP Silicon Epitaxial Planar Transistor FEATURES  High forward current transfer ratio hFE  Excellent HFE Linearity.  Complements the 2SD1819A. Pb Lead-free APPLICATIONS  For general purpose amplification. Production specification 2SB1218A ORDERING INFORMATION Type No. Marking 2SB1218A BQ/BR/BS SOT-323 Package Code SOT-323 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO Collector-Base Voltage -45 VCEO Collector-Emitter Voltage -45 VEBO Emitter-Base Voltage -7 IC Collector Current -Continuous -200 PC Collector Dissipation 150 Tj,Tstg Junction and Storage Temperature -55 to +150 Units V V V mA mW ℃ F034 Rev.A www.gmesemi.
