2SB1201 Datasheet PDF - Sanyo Semicon Device PNP/NPN Epitaxial Planar Silicon Transistors Specs

2SB1201 - PNP/NPN Epitaxial Planar Silicon Transistors

Datasheet Summary

Features

Adoption of FBET, MBIT processes.
Large current capacitance and wide ASO.
Low collector-to-emitter saturation voltage.
Fast switching speed.
Small and slim package making it easy to make 2SB1201/2SD1801-used sets smaller Speciﬁcations ( ): 2SB1201 Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Symbol VCBO VCEO VEBO IC ICP.

Datasheet Details

Part number	2SB1201
Manufacturer	Sanyo Semicon Device
File Size	352.05 KB
Description	PNP/NPN Epitaxial Planar Silicon Transistors
Datasheet	2SB1201 Datasheet
Additional preview pages of the 2SB1201 datasheet.

📁 Similar Datasheet

2SB1201 - Bipolar Transistor (ON Semiconductor)

2SB1201 - Transistors (Kexin)

2SB1201 - Silicon PNP Power Transistor (Inchange Semiconductor)

2SB1202 - Bipolar Transistor (ON Semiconductor)

2SB1202 - PNP Epitaxial Planar Silicon Transistors (GME)

2SB1202 - Silicon PNP Power Transistor (Inchange Semiconductor)

2SB1202 - PNP PLANAR TRANSISTOR (UTC)

2SB1203 - Bipolar Transistor (ON Semiconductor)

2SB1203 - Silicon PNP transistor (BLUE ROCKET ELECTRONICS)

2SB1203 - Silicon PNP Power Transistor (Inchange Semiconductor)

Full PDF Text Transcription

Click to expand full text

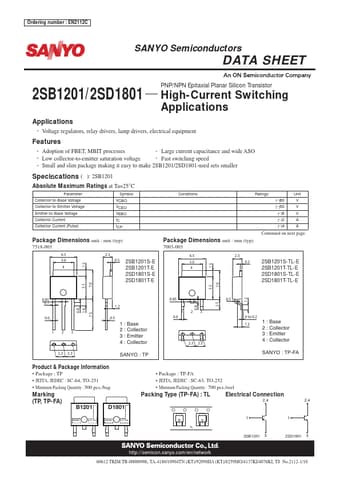

Ordering number : EN2112C 2SB1201/2SD1801 SANYO Semiconductors DATA SHEET 2SB1201/2SD1801 PNP/NPN Epitaxial Planar Silicon Transistor High-Current Switching Applications Applications • Voltage regulators, relay drivers, lamp drivers, electrical equipment Features • Adoption of FBET, MBIT processes • Large current capacitance and wide ASO • Low collector-to-emitter saturation voltage • Fast switching speed • Small and slim package making it easy to make 2SB1201/2SD1801-used sets smaller Speciﬁcations ( ): 2SB1201 Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Symbol VCBO VCEO VEBO IC ICP Conditions Ratings (--)60 (--)50 (--)6 (--)2 (--)4 Unit V V V A A
