Part number:
2SA564A
Manufacturer:
BLUE ROCKET ELECTRONICS
File Size:
670.29 KB
Description:
Silicon pnp transistor.

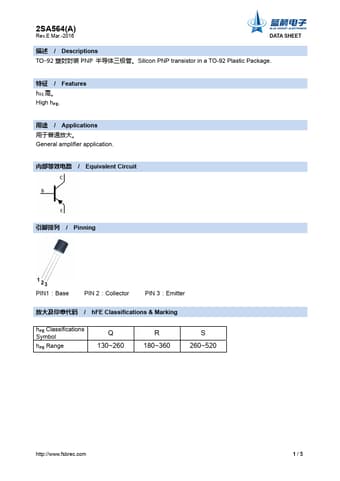

* hFE 。 High hFE. / Applications 。 General amplifier application. / Equivalent Circuit / Pinning 1 23 PIN1：Base PIN 2：Collector PIN 3：Emitter / hFE Classifications & Marking hFE Classifications Symbol hFE Range Q 130~260 R 180~360 S 260~520 http://www.fsbrec.com 1/5 2SA564(A) Rev.E
2SA564A
BLUE ROCKET ELECTRONICS
670.29 KB
Silicon pnp transistor.
