2SA503 - Silicon PNP Transistor

Datasheet Summary

Features

  • High Transition Frequency : f T=80MHz (Typ. ).
  • High Breakdown Voltage : VCEO=-80V : VcEO=- 60v (2SA503) (2SA504).
  • Low Saturation Voltage : VcE(sat)=-0.12V (at I c=-150mA, I B=-15mA).
  • Complementary to 2SC503 and 2SC504. (Typ. ).

📥 Download Datasheet

Datasheet preview – 2SA503

Datasheet Details

Part number 2SA503
Manufacturer Toshiba
File Size 137.63 KB
Description Silicon PNP Transistor
Datasheet download datasheet 2SA503 Datasheet
Additional preview pages of the 2SA503 datasheet.

📁 Similar Datasheet

  • 2SA505 - Silicon PNP Power Transistor (Inchange Semiconductor)
  • 2SA510 - Silicon PNP Transistor (Toshiba Semiconductor)
  • 2SA512 - Silicon PNP Transistor (Toshiba Semiconductor)
  • 2SA52 - GERMANIUM PNP ALLOY JUNCTION TRANSISTOR (ETC)
  • 2SA532 - Medium Power Amplifiers and Switches (Micro Electronics)
  • 2SA537 - Transistor (Hitachi)
  • 2SA537A - Transistor (Hitachi)
  • 2SA539 - Transistors (Usha India)
  • 2SA542 - Transistors (Usha)
  • 2SA554 - PNP Transistor (SeCoS)
Other Datasheets by Toshiba
  • 2SA500 - Silicon PNP Epitaxial Transistor
  • 2SA504 - Silicon PNP Transistor
  • 2SA505 - Silicon PNP Transistor
  • 2SA509 - Silicon PNP Transistor
  • 2SA594 - SILICON PNP TRANSISTOR
  • 2SA1021 - Silicon PNP Transistor
  • 2SA1090 - Silicon PNP transistor
  • 2SA1093 - Silicon PNP Transistor

Full PDF Text Transcription

Click to expand full text

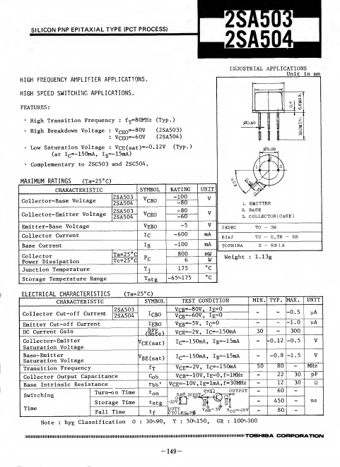

SI LICON PNP EPITAXIAL TYPE (PCT PROCESS) HIGH FREQUENCY AMPLIFIER APPLICATIONS. INDUSTRIAL APPLICATIONS Unit in mm HIGH SPEED SWITCHING APPLICATIONS. FEATURES • High Transition Frequency : f T=80MHz (Typ.) • High Breakdown Voltage : VCEO=-80V : VcEO=- 60v (2SA503) (2SA504) • Low Saturation Voltage : VcE(sat)=-0.12V (at I c=-150mA, I B=-15mA) • Complementary to 2SC503 and 2SC504. (Typ.) <1 X < srd CO <6 00.45 1 11 ^05.
