2SA512, 2SA510 - Silicon PNP Transistor

2SA512 Description

: 2SA510 2SA512, SILICON PIMP EPITAXIAL TYPE (PCT PROCESS) HIGH FREQUENCY AMPLIFIER APPLICATIONS.HIGH VOLTAGE SWITCHING APPLICATIONS.REGULATOR APP.

2SA512 Features

* High Breakdown Voltage : VcEO=-100V : VcEO=-60V
* Various Uses for Medium Power (2S^,510) (2S/i512) zz pa45 I 1 M os Oi : I C=-1.5A (Max. ), P c=800mW (Max. )
* Complementary to 2SC510 and 2SC512. MAXIMUM RATINGS (Ta=25°c) CHARACTERISTIC SYMBOL Collector-Base Voltag

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2SA512, 2SA510. Please refer to the document for exact specifications by model.

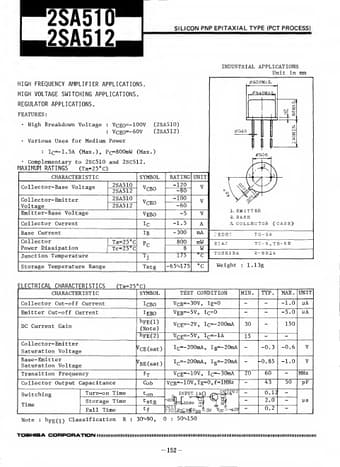

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SA512, 2SA510
Manufacturer
Toshiba ↗ Semiconductor
File Size
125.70 KB
Datasheet
2SA510_ToshibaSemiconductor.pdf
Description
Silicon PNP Transistor
Note
This datasheet PDF includes multiple part numbers: 2SA512, 2SA510.
Please refer to the document for exact specifications by model.
