2SA505 - Silicon PNP Transistor

This page provides the datasheet information for the 2SA505, a member of the 2SA496 Silicon PNP Transistor family.

Datasheet Summary

Features

  • Low Collector Saturation Voltage : VCE ( S at)=-0-32V (Typ. ).
  • Complementary to 2SC495 and 2SC496. 2SA496 2SA505, 7.9MAX. Unit in mm.

📥 Download Datasheet

Datasheet preview – 2SA505

Datasheet Details

Part number 2SA505
Manufacturer Toshiba
File Size 91.85 KB
Description Silicon PNP Transistor
Datasheet download datasheet 2SA505 Datasheet
Additional preview pages of the 2SA505 datasheet.

📁 Similar Datasheet

  • 2SA505 - Silicon PNP Power Transistor (Inchange Semiconductor)
  • 2SA510 - Silicon PNP Transistor (Toshiba Semiconductor)
  • 2SA512 - Silicon PNP Transistor (Toshiba Semiconductor)
  • 2SA52 - GERMANIUM PNP ALLOY JUNCTION TRANSISTOR (ETC)
  • 2SA532 - Medium Power Amplifiers and Switches (Micro Electronics)
  • 2SA537 - Transistor (Hitachi)
  • 2SA537A - Transistor (Hitachi)
  • 2SA539 - Transistors (Usha India)
  • 2SA542 - Transistors (Usha)
  • 2SA554 - PNP Transistor (SeCoS)
Other Datasheets by Toshiba
  • 2SA500 - Silicon PNP Epitaxial Transistor
  • 2SA503 - Silicon PNP Transistor
  • 2SA504 - Silicon PNP Transistor
  • 2SA509 - Silicon PNP Transistor
  • 2SA594 - SILICON PNP TRANSISTOR
  • 2SA1021 - Silicon PNP Transistor
  • 2SA1090 - Silicon PNP transistor
  • 2SA1093 - Silicon PNP Transistor

Full PDF Text Transcription

Click to expand full text

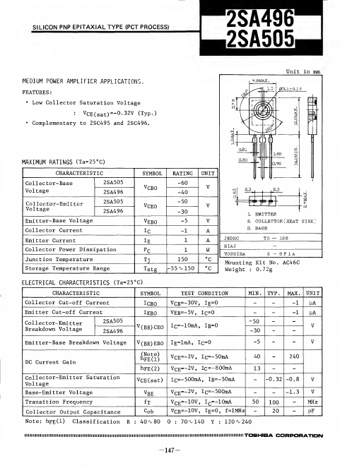

: SILICON PNP EPITAXIAL TYPE (PCT PROCESS) MEDIUM POWER AMPLIFIER APPLICATIONS. FEATURES • Low Collector Saturation Voltage : VCE ( S at)=-0-32V (Typ.) • Complementary to 2SC495 and 2SC496. 2SA496 2SA505, 7.9MAX. Unit in mm MAXIMUM RATINGS (Ta=25°c) CHARACTERISTIC Collector-Base Voltage 2SA505 2SA496 Collector-Emitter Voltage Emitter-Base Voltage Collector Current 2SA505 2SA496 Emitter Current Collector Power Dissipation Junction Temperature Storage Temperature Range SYMBOL RATING -60 v CBO -40 -50 VCEO -30 v EBO -5 ic -1 IE 1 PC 1 Tj Tstg 150 -55% 150 UNIT V V V A A W °C °C 2.3 2.3 PZ 3 1. EMITTER 2. COLLECTOR (HEAT SINK^ 3. BASE — TO 12 ( TOSHIBA Mounting Kit No. AC46C Weight : 0.
