2SC2714 Silicon NPN transistor

BLUE ROCKET ELECTRONICS

Description

2SC2714 Rev.E Mar.-2016 DATA SHEET / .
SOT-23 NPN 。Silicon NPN transistor in a SOT-23 Plastic Package.

📥 Download Datasheet

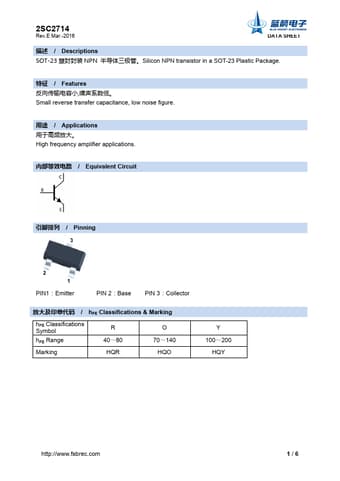

2SC2714 Datasheet Preview — Preview of 2SC2714 PDF

Datasheet Specifications

Part number: 2SC2714
Manufacturer: BLUE ROCKET ELECTRONICS
File Size: 785.94 KB
Datasheet: 2SC2714-BLUEROCKETELECTRONICS.pdf
Description: Silicon NPN transistor

Applications

* 。 High frequency amplifier applications. / Equivalent Circuit / Pinning 3 2 1 PIN1：Emitter PIN 2：Base PIN 3：Collector / hFE Classifications & Marking hFE Classifications Symbol hFE Range R 40～80 O 70～140 Marking HQR HQO Y 100～200 HQY http://www. fsbrec. com 1/6 2SC2714 Rev. E Mar. -20
