2SC2715 - Silicon NPN transistor

2SC2715 Description

2SC2715 Rev.E Mar.-2016 DATA SHEET / .
SOT-23 NPN 。Silicon NPN transistor in a SOT-23 Plastic Package.

2SC2715 Applications

* 。 High frequency amplifier applications. / Equivalent Circuit / Pinning 3 2 1 PIN1：Emitter PIN 2：Base PIN 3：Collector / hFE Classifications & Marking hFE Classifications Symbol hFE Range R 40～80 O 70～140 Marking HRR HRO Y 120～240 HRY http://www. fsbrec. com 1/6 2SC2715 Rev. E Mar. -20

📥 Download Datasheet

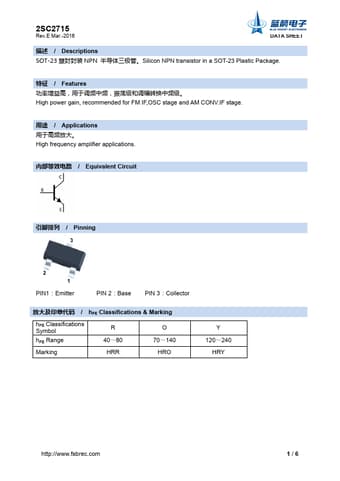

Preview of 2SC2715 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SC2715
Manufacturer
BLUE ROCKET ELECTRONICS
File Size
681.70 KB
Datasheet
2SC2715-BLUEROCKETELECTRONICS.pdf
Description
Silicon NPN transistor
