2SC2703 Silicon NPN transistor

BLUE ROCKET ELECTRONICS

Description

2SC2703(BR3DG2703L) Rev.C Feb.-2015 DATA SHEET / .
TO-92LM NPN 。Silicon NPN transistor in a TO-92LM Plastic Package.

📥 Download Datasheet

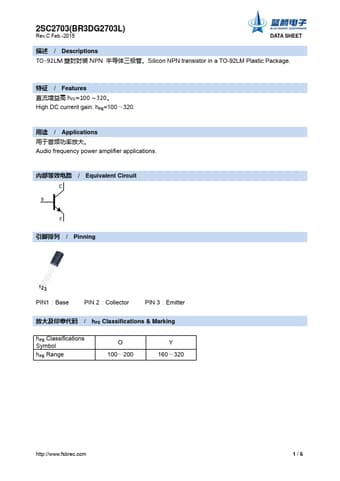

2SC2703 Datasheet Preview — Preview of 2SC2703 PDF

Datasheet Specifications

Part number: 2SC2703
Manufacturer: BLUE ROCKET ELECTRONICS
File Size: 720.71 KB
Datasheet: 2SC2703-BLUEROCKETELECTRONICS.pdf
Description: Silicon NPN transistor

Applications

* 。 Audio frequency power amplifier applications. / Equivalent Circuit / Pinning 123 PIN1：Base PIN 2：Collector PIN 3：Emitter / hFE Classifications & Marking hFE Classifications Symbol hFE Range O 100～200 Y 160～320 http://www. fsbrec. com 1/6 2SC2703(BR3DG2703L) Rev. C Feb. -2015 / Absolute
