2SC2706 - NPN Transistor

Datasheet Summary

Description

Collector-Emitter Breakdown Voltage- : V(BR)CEO= 140V(Min) Complement to Type 2SA1146 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Audio frequency low power amplifier applications Recommend for 70W audio frequency amplifier

📥 Download Datasheet

Datasheet preview – 2SC2706

Datasheet Details

Part number 2SC2706
Manufacturer INCHANGE
File Size 198.89 KB
Description NPN Transistor
Datasheet download datasheet 2SC2706 Datasheet
Additional preview pages of the 2SC2706 datasheet.

📁 Similar Datasheet

  • 2SC2706 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC2706 - Silicon NPN Transistor (Toshiba)
  • 2SC2703 - Silicon NPN TRANSISTOR (Toshiba Semiconductor)
  • 2SC2703 - NPN Transistor (JCET)
  • 2SC2703 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SC2704 - Silicon NPN Transistor (Toshiba)
  • 2SC2705 - TRANSISTOR (Toshiba Semiconductor)
  • 2SC2705 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SC2707 - Power Transistor (Inchange Semiconductor)
  • 2SC2710 - Silicon NPN TRANSISTOR (Toshiba Semiconductor)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text

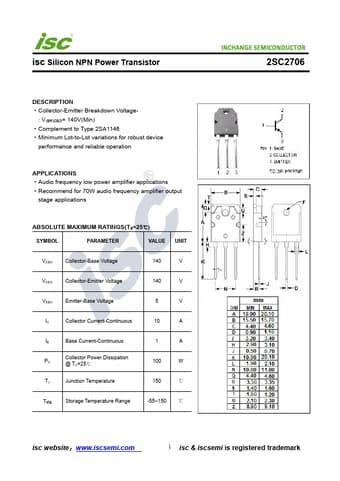

isc Silicon NPN Power Transistor DESCRIPTION ·Collector-Emitter Breakdown Voltage- : V(BR)CEO= 140V(Min) ·Complement to Type 2SA1146 ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Audio frequency low power amplifier applications ·Recommend for 70W audio frequency amplifier output stage applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 140 V VCEO Collector-Emitter Voltage 140 V VEBO Emitter-Base Voltage 5 V IC Collector Current-Continuous 10 A IB Base Current-Continuous PC Collector Power Dissipation @ TC=25℃ TJ Junction Temperature 1 A 100 W 150 ℃ Tstg Storage Temperature Range -55~150 ℃ 2SC2706 isc website：www.iscsemi.
