2SC3420 - Silicon NPN transistor

2SC3420 Description

2SC3420 Rev.E Mar.-2016 DATA SHEET / .
TO-126F NPN 。Silicon NPN transistor in a TO-126F Plastic Package.

2SC3420 Applications

* ,。 Storobo flash applications, medium power amplifier applications. / Equivalent Circuit / Pinning 12 3 PIN1：Emitter PIN 2：Collector PIN 3：Base / hFE Classifications & Marking hFE Classifications Symbol hFE Range Y 140～240 GR 200～400 BL 300～600 http://www. fsbrec. com 1/6 2SC3420 Rev

📥 Download Datasheet

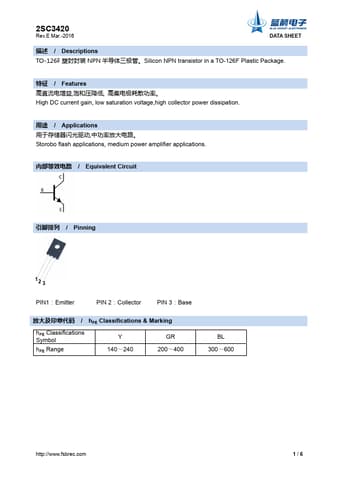

Preview of 2SC3420 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SC3420
Manufacturer
BLUE ROCKET ELECTRONICS
File Size
728.08 KB
Datasheet
2SC3420-BLUEROCKETELECTRONICS.pdf
Description
Silicon NPN transistor
