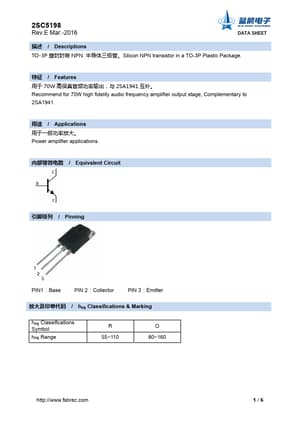

datasheet Preview Page 1 from Datasheet4u.com

2SC5198 Silicon NPN transistor

2SC5198 Rev.E Mar.-2016 DATA SHEET / .
TO-3P NPN 。Silicon NPN transistor in a TO-3P Plastic Package.

2SC5198-BLUEROCKETELECTRONICS.pdf

2SC5198 Datasheet Preview — Preview of 2SC5198 PDF

Datasheet Details

Part number:

2SC5198

Manufacturer:

BLUE ROCKET ELECTRONICS

File Size:

935.54 KB

Description:

Silicon NPN transistor

Applications

* 。 Power amplifier applications. / Equivalent Circuit / Pinning PIN1：Base PIN 2：Collector PIN 3：Emitter / hFE Classifications & Marking hFE Classifications Symbol hFE Range R 55~110 O 80~160 http://www. fsbrec. com 1/6 2SC5198 Rev. E Mar. -2016 / Absolute Maximum Ratings(Ta=25℃) Parame
