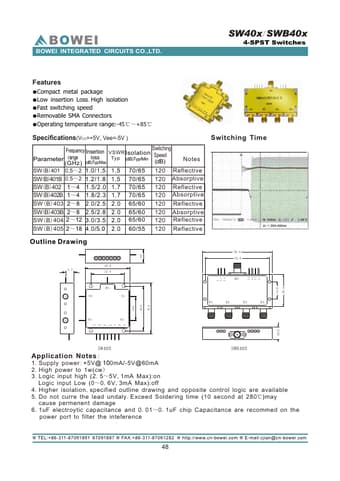

SW402, SW401 - 4-SPST Switches

BOWEI

Datasheet Details

Part number	SW402, SW401
Manufacturer	BOWEI
File Size	300.93 KB
Description	4-SPST Switches
Datasheet	SW401_BOWEI.pdf
Note	This datasheet PDF includes multiple part numbers: SW402, SW401. Please refer to the document for exact specifications by model.

Compact.
Low metal package insertion Loss. High isolation.
Fast switching speed.
Removable SMA Connectors.
Operating temperature range:-45℃～+85℃ Specifications(VCC=+5V, Vee=-5V ) Frequency Insertion Ioss Parameter range (GHz) (dB)Typ/Max SW(B)401 0.5～2 1.0/ 1 .5 SW(B)401B 0.5～2 1.2/ 1 .8 SW(B)402 1～4 1.5/2.0 SW(B)402B 1～4 1.8/2.3 SW(B)403 2～8 2.0/2.5 SW(B)403B 2～8 2.5/2.8 SW(B)404 2～12 3.0/3.5 SW(B)405 2～18 4.0/5 .0 VSWR Isolation Speed Typ (dB)Typ/Min Switching Time Switc.
