SW404, SW401 - 4-SPST Switches

Name: SW404
SKU: SW404-713894

BOWEI

The SW404 by BOWEI is a 4-SPST Switches. Below is the official datasheet preview.

Datasheet Details

Part number	SW404, SW401
Manufacturer	BOWEI
File Size	300.93 KB
Description	4-SPST Switches
Datasheet	SW401_BOWEI.pdf
Note	This datasheet PDF includes multiple part numbers: SW404, SW401. Please refer to the document for exact specifications by model.

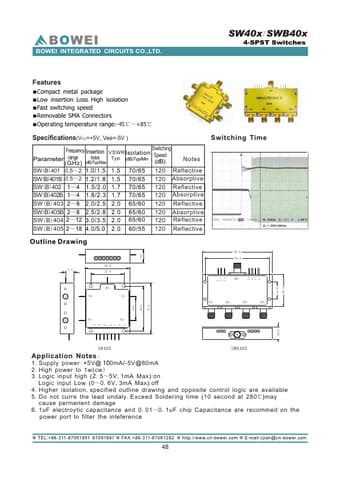

Additional preview pages of the SW404 datasheet.

Compact.
Low metal package insertion Loss. High isolation.
Fast switching speed.
Removable SMA Connectors.
Operating temperature range:-45℃～+85℃ Specifications(VCC=+5V, Vee=-5V ) Frequency Insertion Ioss Parameter range (GHz) (dB)Typ/Max SW(B)401 0.5～2 1.0/ 1 .5 SW(B)401B 0.5～2 1.2/ 1 .8 SW(B)402 1～4 1.5/2.0 SW(B)402B 1～4 1.8/2.3 SW(B)403 2～8 2.0/2.5 SW(B)403B 2～8 2.5/2.8 SW(B)404 2～12 3.0/3.5 SW(B)405 2～18 4.0/5 .0 VSWR Isolation Speed Typ (dB)Typ/Min Switching Time Switc.
