SW4N60B Datasheet, Mosfet, SEMIPOWER

SW4N60B Features

• Mosfet
• High ruggedness
• RDS(ON) (Max 2.5 Ω)@VGS=10V
• Gate Charge (Typ 11nC)
• Improved dv/dt Capability
• 100% Avalanche Tested : 4A RDS(ON) : 2.5

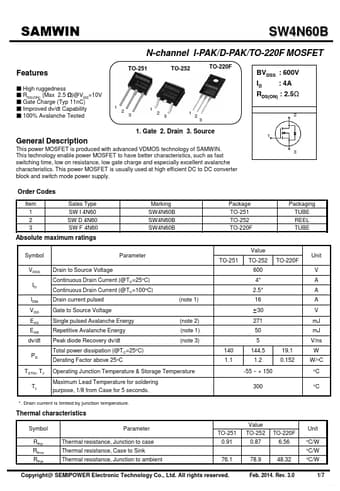

PDF File Details

Part number:

SW4N60B

Manufacturer:

SEMIPOWER

File Size:

932.96kb

Download:

📄 Datasheet

Description:

N-channel i-pak/d-pak/to-220f mosfet. This power MOSFET is produced with advanced VDMOS technology of SAMWIN. This technology enable power MOSFET to have better characteri
