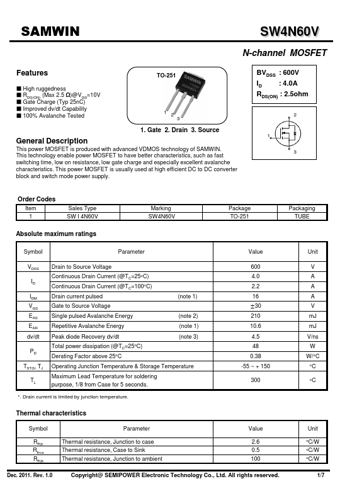

SW4N60V Datasheet, Mosfet, Samwin

SW4N60V Features

• Mosfet
• High ruggedness
• RDS(ON) (Max 2.5 Ω)@VGS=10V
• Gate Charge (Typ 25nC)
• Improved dv/dt Capability
• 100% Avalanche Tested TO-251 3 1 1. Gat

PDF File Details

Part number:

SW4N60V

Manufacturer:

Samwin

File Size:

1.01MB

Download:

📄 Datasheet

Description:

N-channel mosfet. This power MOSFET is produced with advanced VDMOS technology of SAMWIN. This technology enable power MOSFET to have better characteri
