SW4N80B Datasheet, Mosfet, Samwin

SW4N80B Features

• Mosfet
• High ruggedness
• RDS(ON) (Max 4Ω)@VGS=10V
• Gate Charge (Typical 14nC)
• Improved dv/dt Capability
• 100% Avalanche Tested TO-220F TO-251N

PDF File Details

Part number:

SW4N80B

Manufacturer:

Samwin

File Size:

488.53kb

Download:

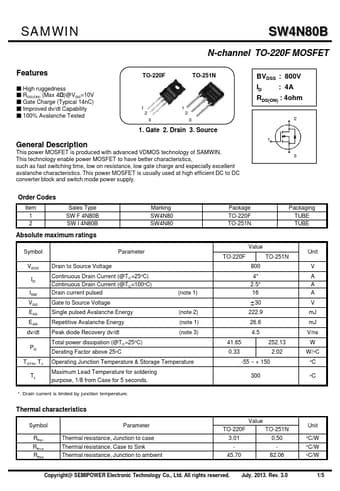

📄 Datasheet

Description:

N-channel to-220f mosfet. This power MOSFET is produced with advanced VDMOS technology of SAMWIN. This technology enable power MOSFET to have better characteri
