BP6908, BP6901 - 600V Half-Bridge Pre-Driver

BPS

📥 Download Datasheet

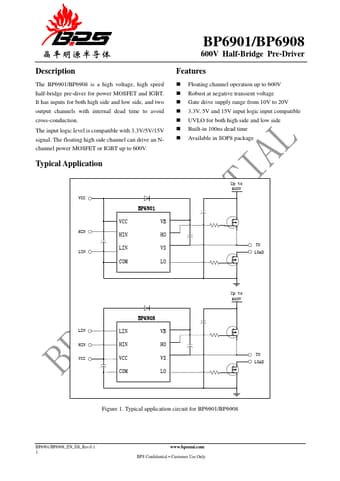

BP6908 Datasheet Preview — This datasheet PDF includes multiple part numbers: BP6908, BP6901. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BP6908, BP6901
Manufacturer	BPS
File Size	432.68 KB
Description	600V Half-Bridge Pre-Driver
Datasheet	BP6901-BPS.pdf
Note	This datasheet PDF includes multiple part numbers: BP6908, BP6901. Please refer to the document for exact specifications by model.

BP6908 Product details

Description

The BP6901/BP6908 is a high voltage, high speed half-bridge pre-diver for power MOSFET and IGBT.

Features

Floating channel operation up to 600V.
Robust at negative transient voltage.
Gate drive supply range from 10V to 20V.
3.3V, 5V and 15V input logic input compatible.
UVLO for both high side and low side.
Built-in 100ns dead time.
Available in SOP8 package Typical.
