BP6903A Datasheet - BPS

600V Half-Bridge Pre-Driver

BP6903A Features

* Floating channel operation up to 600V

* Robust at negative transient voltage

* Gate drive supply range from 10V to 20V

* 3.3V, 5V and 15V input logic compatible

* Reverse input for low side

* UVLO for both high side and low side

* Built-in dead time

* Available in S

BP6903A General Description

The BP6903A is a high voltage, high speed halfbridge pre-driver for power MOSFET and IGBT. It has inputs for both high side and low side, and two output channels with internal dead time to avoid cross-conduction. The input logic level is compatible with 3.3V/5V/15V signal. The floating high side cha.

BP6903A Datasheet (330.06 KB)

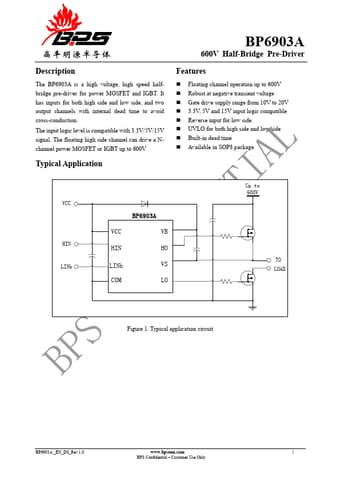

BP6903A Datasheet Preview — Preview of BP6903A PDF

Datasheet Details

Part number:

BP6903A

Manufacturer:

BPS

File Size:

330.06 KB

Description:

600v half-bridge pre-driver.
