BP6904A - 600V Half-Bridge Pre-Driver

The BP6904A is a high voltage, high speed halfbridge pre-driver for power MOSFET and IGBT.

It has one input for high side and low side, and two output channels with internal dead time to avoid cross-conduction.

The input logic level is compatible with 3.3V/5V/15V signal.

The floating high side chann

BP6904A Features

* Floating channel operation up to 600V

* Single input for high side and low side

* Shut down input turns off both channels

* Robust at negative transient voltage

* Gate drive supply range from 10V to 20V

* 3.3V, 5V and 15V input logic compatible

* UVLO for both high side

BP6904A-BPS.pdf

Preview of BP6904A PDF

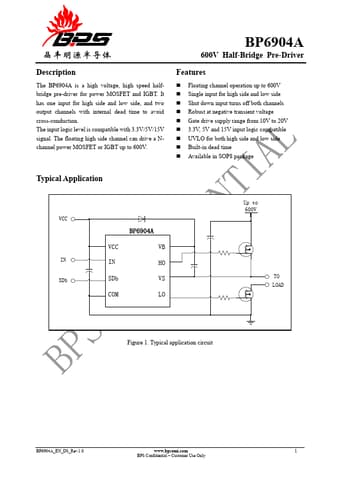

BP6904A Datasheet Preview Page 2 BP6904A Datasheet Preview Page 3

Datasheet Details

Part number:

BP6904A

Manufacturer:

BPS

File Size:

585.28 KB

Description:

600v half-bridge pre-driver.
