BP6903 Datasheet - BPS

600V Half-Bridge Pre-Driver

BP6903 Features

* Floating channel operation up to 600V

* Robust at negative transient voltage

* Gate drive supply range from 10V to 20V

* 3.3V, 5V and 15V input logic input compatible

* Reverse input for low side

* UVLO for both high side and low side

* Built-in dead time

* Availabl

BP6903 General Description

The BP6903 is a high voltage, high speed half-bridge pre-diver for power MOSFET and IGBT. It has inputs for both high side and low side, and two output channels with internal dead time to avoid crossconduction. The input logic level is compatible with 3.3V/5V/15V signal. The floating high side chann.

BP6903 Datasheet (492.09 KB)

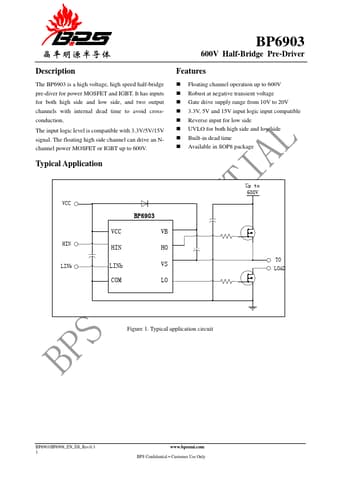

BP6903 Datasheet Preview — Preview of BP6903 PDF

Datasheet Details

Part number:

BP6903

Manufacturer:

BPS

File Size:

492.09 KB

Description:

600v half-bridge pre-driver.
