BP6901A Datasheet - BPS

600V Half-Bridge Pre-Driver

BP6901A Features

* Floating channel operation up to 600V

* Robust at negative transient voltage

* Gate drive supply range from 10V to 20V

* 3.3V, 5V and 15V input logic compatible

* UVLO for both high side and low side

* Built-in 100ns dead time

* Available in SOP8 package Typical Applic

BP6901A General Description

The BP6901A/BP6908A is a high voltage, high speed half-bridge pre-driver for power MOSFET and IGBT. It has inputs for both high side and low side, and two output channels with internal dead time to avoid cross-conduction. The input logic level is compatible with 3.3V/5V/15V signal. The floating high.

BP6901A Datasheet (312.91 KB)

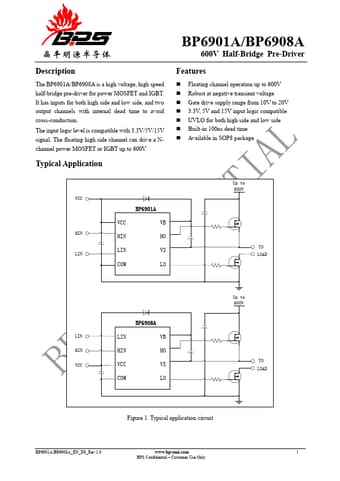

Preview of BP6901A PDF

Datasheet Details

Part number:

BP6901A

Manufacturer:

BPS

File Size:

312.91 KB

Description:

600v half-bridge pre-driver.
