B822x

Surface Mount Zero Bias Schottky

B822x Features

* Low FIT (Failure in Time) Rate

* Low Turn-On Voltage (As Low as 0.34 V at 1 mA) Six-sigma Quality Level Single, Dual and Quad Versions Unique Configurations in Surface Mount SOT-23/143 Package B-282K Grounded Center L

B822x General Description

This specific line of Schottky diodes were specifically designed for both digital and analog applications. This series includes a wide range of specifications and package configurations which gives the designer wide flexibility. General applications of these Schottky diodes are clamping, mixing, det.

B822x Datasheet (297.40 KB)

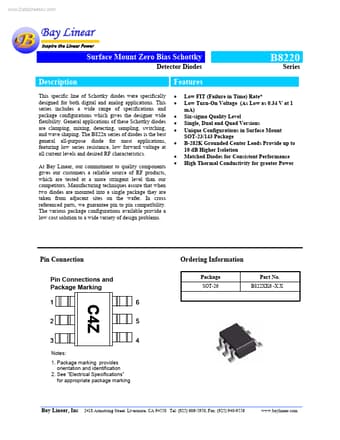

Preview of B822x PDF

Datasheet Details

Part number:

B822x

Manufacturer:

Bay Linear

File Size:

297.40 KB

Description:

Surface mount zero bias schottky.
