B82141A Datasheet - EPCOS

B82141A SBC choke

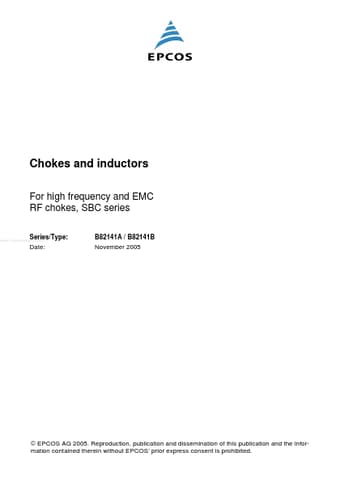

Chokes and inductors For high frequency and EMC RF chokes, SBC series Series/Type: B82141A / B82141B November 2005 www.DataSheet4U.com 7ffÁRspp Date: © EPCOS AG 2005. Reproduction, publication and dissemination of this publication and the information contained therein without EPCOS’ prior express consent is prohibited. RF chokes SBC series SBC choke (Small Bobbin Core) Rated current 55 to 725 mA Rated inductance 1 to 1000 NH Construction Mini ferrite drum core Winding: enamel c.

B82141A Features

* Small size

* Relatively high rated current

* RoHS-compatible (see page 6) Applications

* RF blocking and filtering

* Decoupling and interference suppression

* For electronic household appliances, automotive and entertainment electronics Terminals

* Central axial leads

B82141A Datasheet (245.24 KB)

B82141A Datasheet Preview — Preview of B82141A PDF

Datasheet Details

Part number:

B82141A

Manufacturer:

EPCOS

File Size:

245.24 KB

Description:

Sbc choke.
