B820 - Surface Mount Schottky Barrier Rectifiers

B820 Description

B820 thru B860 Surface Mount Schottky Barrier Rectifiers .

B820 Applications

* REVERSE VOLTAGE 20 TO 60 VOLTS FORWARD CURRENT 8.0 AMPERE Mechanical Data:
* Case : Molded Plastic
* Polarity :Indicated by cathode band
* Weight : 0.007 Ounce ,0.21 grams SMC(DO-214AB) SMC Outline Dimension www. DataSheet4U. com Unit:mm SMC Dim A B C D E G H J Min Max 5.59 6.60 2.7

📥 Download Datasheet

Preview of B820 PDF

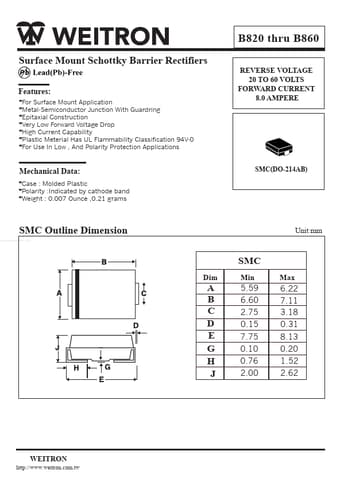

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
B820
Manufacturer
Weitron Technology
File Size
230.38 KB
Datasheet
B820_WeitronTechnology.pdf
Description
Surface Mount Schottky Barrier Rectifiers
