B82143B Chokes and inductors

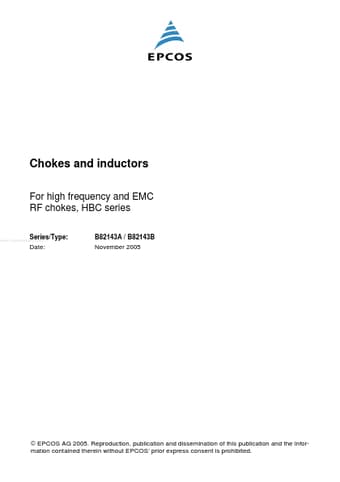

Chokes and inductors For high frequency and EMC RF chokes, HBC series Series/Type: B82143A / B82143B November 2005 www.DataSheet4U.com 7ffÁRspp Date: © EPCOS AG 2005. Reproduction, publication and dissemination of this publication and the information contained therein without EPCOS’ prior express consent is prohibited. RF chokes HBC series HBC choke (High-Current Bobbin Core) Rated current 850 to 2000 mA Rated inductance 1 to 27 NH Construction Ferrite drum core Winding: enamel.

B82143B Features

* Very high rated current

* Low dc resisctances

* RoHS-compatible (see page 5) Applications

* Decoupling

* Interference suppression

* For electronic household appliances, automotive and entertainment electronics Terminals

* Central axial leads, lead-free tinned

* Ra

B82143A_EPCOS.pdf

B82143B Datasheet Preview — This datasheet PDF includes multiple part numbers: B82143B, B82143A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

B82143B, B82143A

Manufacturer:

EPCOS

File Size:

216.30 KB

Description:

Chokes and inductors.

Note:

This datasheet PDF includes multiple part numbers: B82143B, B82143A.
Please refer to the document for exact specifications by model.
