B82111B Chokes and inductors

and specifications contained in this publication are still applicable before or when you place an order. We also reserve the right to discontinue production and delivery of products. Consequently, we cannot guarantee that all products named in this publication will always be available. 6. Unless ot.

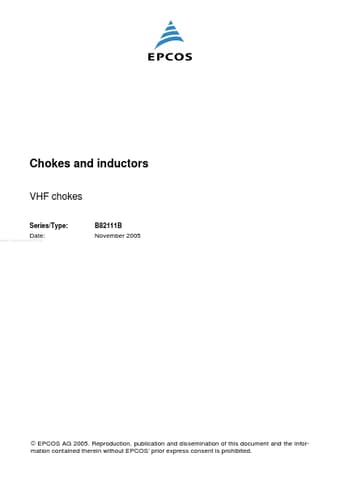

Chokes and inductors VHF chokes Series/Type: www.DataSheet4U.com B82111B November 2005 Date: 7ffÁRspp © EPCOS AG 2005. Reproduction, publication and dissemination of this document and the information contained therein without EPCOS’ prior express consent is prohibited. VHF chokes Ferrite core Rated voltage 500 VAC/DC Rated current 2 to 10 A Rated inductance 3 to 25 NH Construction Ferrite cylinder core Winding: single-layer, enamel copper wire, B82111B winding ends brought o.

B82111B Features

* High resonant frequency

* High rated current

* RoHS-compatible1) Applications

* RF blocking and filtering

* Interference suppression in small appliances Marking LR and IR in clear text and approval mark Delivery mode Bulk Approvals Approval mark Standard EN 60938-2 Dimensiona
