BM0950HV Step-up boost Converter

BM0950HV Description

BM0950HV Step-up boost Converter .
BM0950HVBOOST DCDC， 70HZ ， ， BM0950HV+3V ~ +18V BM0950HV+5V ~ +80V （100V BM，MOS） 2mA MOS， ，。 12V up to 24V 1A5 6V up to 12V 2A 12V up to 48V 0.

BM0950HV Features

* Wide 3V to18V Operating Input Range Output Adjustable from 5V to 80V Programmable maximum peak current 30mΩ Internal Power MOSFET Switch 87% Efficiency at Vin=12V，Vout=24V@1.5A  Iq = 2mA Fixed 70KHz Frequency Thermal Shutdown Cycle-by-Cycle Over Current Protection Available in 9-Pin SIP9 P

BM0950HV Applications

*  +5V up to +12V  +12V up to +48V PIN DEFINE PIN1 PIN2 PIN3 PIN4 PIN5 PIN6 PIN7 PIN8 PIN9 FB-ADJ 1.24V VIN VP to L GND GND SW1 GND GND SW2 1www. bookly. com Rev. 2.02

📥 Download Datasheet

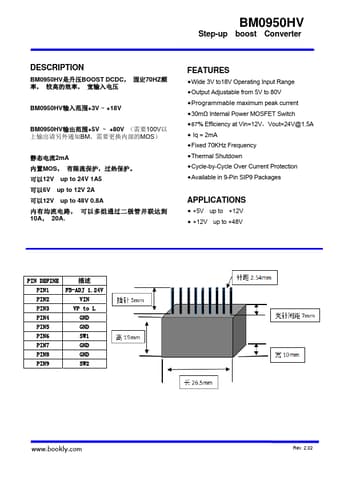

Preview of BM0950HV PDF
datasheet Preview Page 2

Datasheet Details

Part number
BM0950HV
Manufacturer
Bookly
File Size
206.11 KB
Datasheet
BM0950HV-Bookly.pdf
Description
Step-up boost Converter
