MS75N075 Datasheet - Bruckewell

MS75N075, 75V N-Channel MOSFET

MS75N75 75V N-Channel MOSFET .

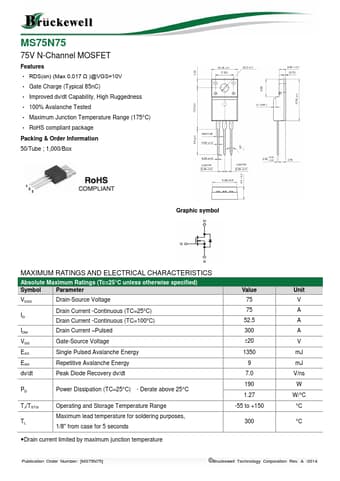

datasheet Preview Page 1 from Datasheet4u.com

MS75N075-Bruckewell.pdf

MS75N075 Datasheet Preview — Preview of MS75N075 PDF

Datasheet Details

Part number:

MS75N075

Manufacturer:

Bruckewell

File Size:

395.03 KB

Description:

75V N-Channel MOSFET

Features

* RDS(on) (Max 0.017 Ω )@VGS=10V
* Gate Charge (Typical 85nC)
* Improved dv/dt Capability, High Ruggedness
* 100% Avalanche Tested
* Maximum Junction Temperature Range (175°C)
* RoHS compliant package Packing & Order Information 50/Tube ; 1,000/Box Gr

Applications

* are based on Bruckewell’s knowledge of typical requirements that are often placed on Bruckewell products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particul
