INA143 High-Speed/ Precision/ G = 10 or G = 0.1 DIFFERENCE AMPLIFIERS

The INA143 and INA2143 are high slew rate, gain of 10V/V or 0.1V/V difference amplifiers consisting of a precision op amp with a precision resistor network. The on-chip resistors are laser trimmed for accurate gain and high common-mode rejection. Excellent TCR tracking of the resistor maintains gain.

INA143 Features

* q DESIGNED FOR LOW COST q G = 10V/V or G = 0.1V/V q SINGLE, DUAL VERSIONS q LOW OFFSET VOLTAGE: ±250µV max, ±3µV/°C max q LOW GAIN ERROR: 0.01% q HIGH SLEW RATE: 5V/µs q FAST SETTLING TIME: 9µs to 0.01% q LOW QUIESCENT CURRENT: 950µA q WIDE SUPPLY RANGE: ±2.25V to ±18V q SO-8 and SO-14 PACKAGES APP

INA143 Datasheet (145.01 KB)

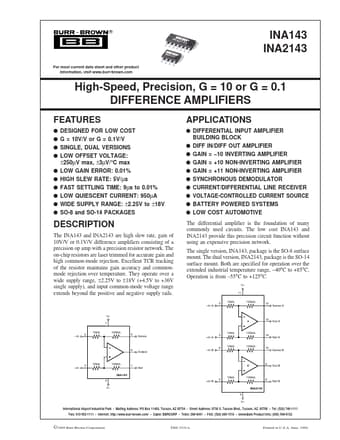

Preview of INA143 PDF

Datasheet Details

Part number:

INA143

Manufacturer:

Burr-Brown Corporation

File Size:

145.01 KB

Description:

High-speed/ precision/ g = 10 or g = 0.1 difference amplifiers.
