INA146 Datasheet, Amplifier, Burr-Brown Corporation

INA146 Features

• Amplifier q HIGH COMMON-MODE VOLTAGE: +40V at VS = +5V ±100V at VS = ±15V q DIFFERENTIAL GAIN = 0.1V/V TO 100V/V: Set with External Resistors q LOW QUIESCENT CURRENT: 570µA q WIDE SUPPLY RANGE: S

PDF File Details

Part number:

INA146

Manufacturer:

Burr-Brown Corporation

File Size:

129.19kb

Download:

📄 Datasheet

Description:

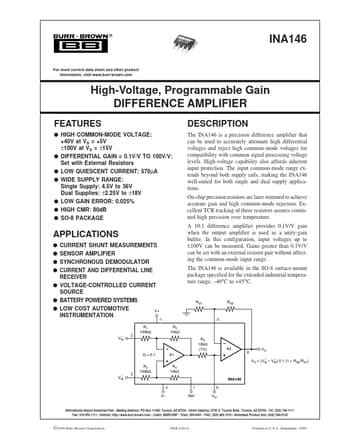

High-voltage/ programmable gain difference amplifier. The INA146 is a precision difference amplifier that can be used to accurately attenuate high differential voltages and reject high co

INA146 Application

• Applications On-chip precision resistors are laser-trimmed to achieve accurate gain and high common-mode rejection. Excellent TCR tracking of these
